Description
🔹 Overview

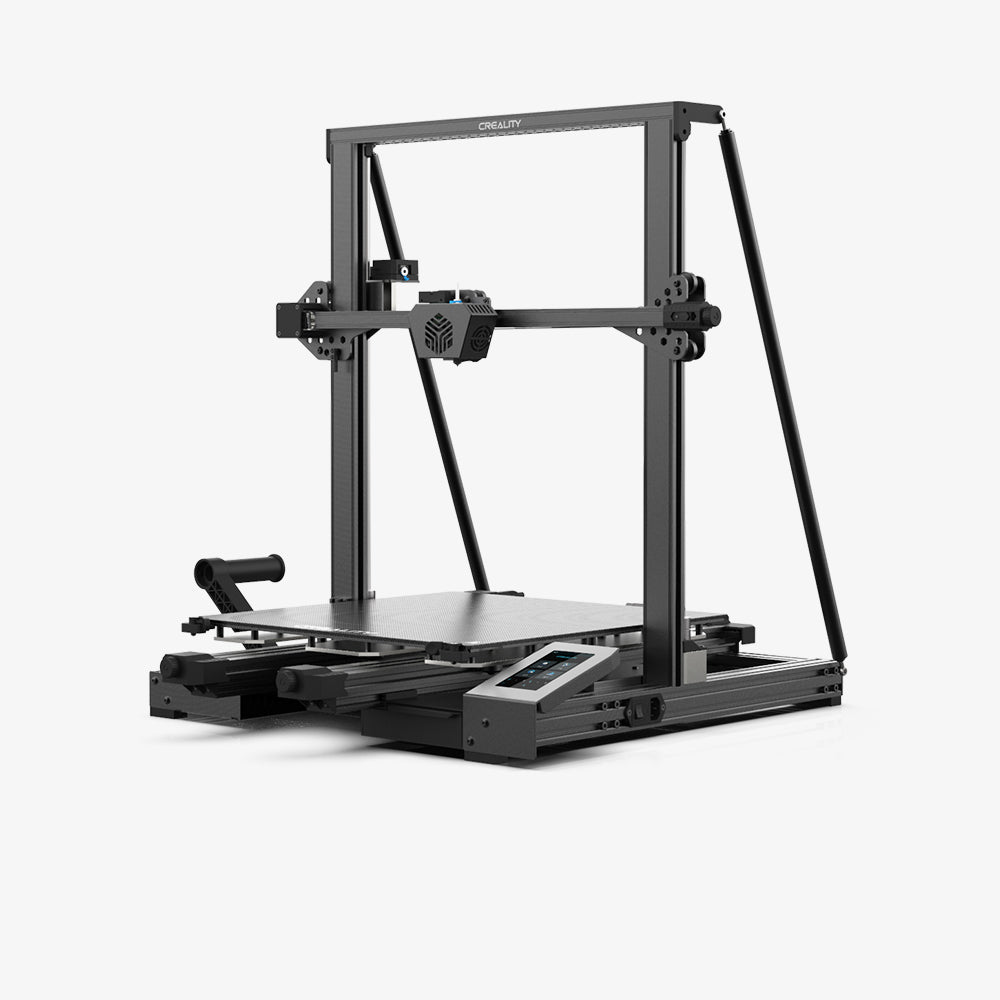

The Creality CR-6 MAX is the large-format version of the CR-6 SE series, designed for makers and professionals who need extra-large build volume and reliable FDM printing.
It features auto bed leveling, a rigid frame, and convenient user features.
⚙️ Main Specifications
| Feature | Details |
|---|---|
| Brand / Model | Creality CR-6 MAX |
| Printing Technology | FDM / FFF (Fused Deposition Modeling) |
| Build Volume | 400 × 400 × 400 mm |
| Filament Diameter | 1.75 mm |
| Layer Resolution | 0.1 – 0.4 mm |
| Max Nozzle Temperature | 260 °C |
| Heated Bed | Yes – Carborundum glass heat bed |
| Bed Leveling | Fully automatic (pressure sensor, no external probe) |
| Frame Construction | Dual Z-axis and Y-axis for stability |
| Touch Screen | 4.3-inch color touchscreen |
| Filament Sensor | Yes – detects filament runout |
| Power Loss Recovery | Yes – resume printing function |
| Supported Materials | PLA, PETG, TPU, ABS (with enclosure), Wood |
| Connectivity | SD card / USB |
| Machine Dimensions | 725 × 640 × 691 mm |
| Net Weight | ~21 kg |
| Power Supply | 100–240 V AC, 50/60 Hz |
